CONNERTON RADIANT CHAR BROILER
SPECIFICATIONS
- Professional radiant broiler available in widths from 12″ to 52″
- High-powered burners (28,000 BTU each) with up to 140,000 total BTU
- All #304 stainless steel construction with heavy-duty cast iron grates
- Features 21″ cooking depth with adjustable rear height
- Made in USA with counter or floor model options
-
Body: 18 Gauge #304 Stainless Steel, Fully Welded
- Fire Box: 16 Gauge #304 Stainless Steel, Fully Welded
- Front: Removable 18 Gauge #304 Stainless Steel Panel
- Top Grates: Heavy-Duty Cast-Iron w/Adjustable Rear Height
- Radiants: 12 Gauge Stainless Steel
- Burners: 28,000 BTU Cast Iron, 18” Long
- Drip Pan: 18 Gauge #304 Stainless Steel
- Valves: Heavy Duty Brass
- Gas Inlet: 3⁄4 NPT
- Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
- Legs (Floor Model): #304 Stainless Steel tubing with bullet, Casters or seismic options

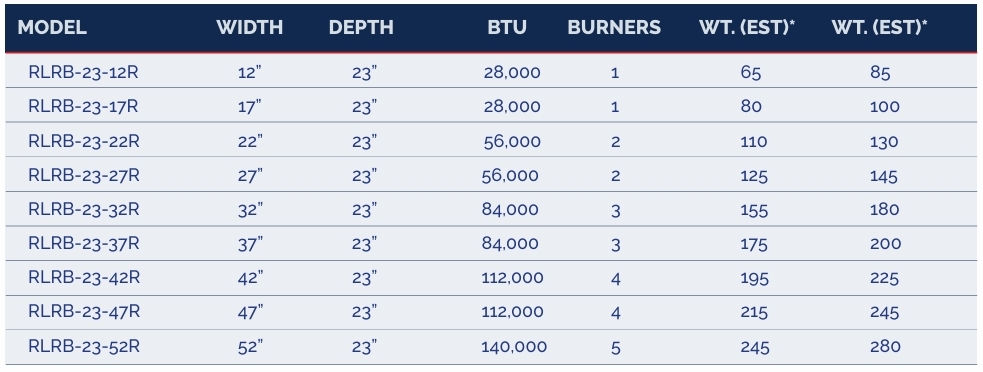

CHAR BROILER SIZES
