CONNERTON LAVA ROCK CHAR BROILER
SPECIFICATIONS
- Professional lava rock broiler available in multiple widths (12″ to 52″)
- Features extended 18″ burners for superior heat distribution (28,000 BTU each)
- Constructed with welded #304 stainless steel and removable firebox
- Models range from 1 to 5 burners (28,000 to 140,000 total BTU)
- Includes 21″ cooking depth with optional rolling rod grates
-
Body: 18 Gauge #304 Stainless Steel, Fully Welded
- Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body
- Front: Removable 18 Gauge #304 Stainless Steel Panel
- Top Grates: Heavy Duty Cast Iron, Adjustable Rear Height
- Bottom Grate: Waffle Grate
- Burners: 28,000 BTU Cast Iron, 18” Long
- Drip Pan: 18 Gauge #304 Stainless Steel
- Valves: Heavy Duty Brass
- Gas Inlet: 3⁄4 NPT
- Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
- Legs (Floor Model): #304 Stainless Steel tubing with bullet, caster or seismic options

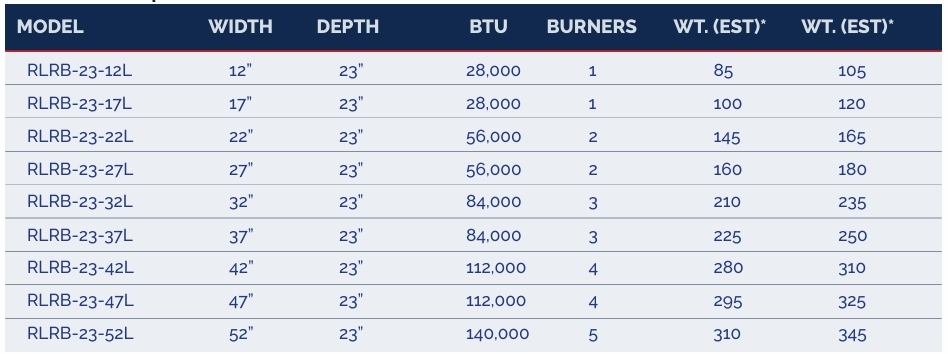

CHAR BROILER SIZES
