CONNERTON HEAVY DUTY RADIANT CHAR BROILER
SPECIFICATIONS
- Up to 240,000 BTU, multiple burners
- Heavy-duty stainless-steel build
- Optional grates, lava rock, splash guards
- Countertop or floor model options
- Includes gas pressure regulator
-
Body: 16 Gauge #304 Stainless Steel, Fully Welded
- Fire Box: 14 Gauge #304 Stainless Steel, Welded to Body
- Front: Removable 18 Gauge #304 Stainless Steel Panel
- Top Grates: Heavy-Duty Cast-Iron w/ “Grease Flow Channels”
- Radiant: Heavy Duty Cast Iron
- Burners: 20,000 BTU Stainless Steel
- Drip Pan: 18 Gauge #304 Stainless Steel
- Valves: Heavy Duty Brass
- Gas Inlet: 3⁄4 NPT
- Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
- Legs (Floor Model): #304 Stainless Steel tubing with Stainless Steel undershelf and adjustable feet or casters.

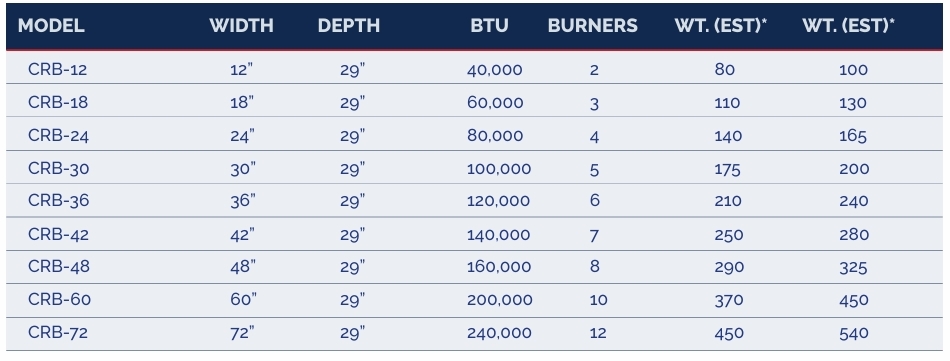

RADIANT CHAR BROILER SIZES
